In the manufacturing of electrical cables, each component plays an essential role. While conductors and insulation are the most visible elements, other structural materials are critical to overall performance in modern electrical lines. Among these, cotton filler cords stand out as a key technical solution for enhancing the durability, structural stability, and flexibility of high-performance cables.
Technical summary :
- Material: 100% natural cotton; non-conductive and non-abrasive.
- Primary Function: Fills internal voids, maintains a circular cross-section, and manages internal moisture.
- Impact: Increases resistance to torsion, compression, and mechanical fatigue in low/medium voltage and control cables.
What are cotton filler cords?

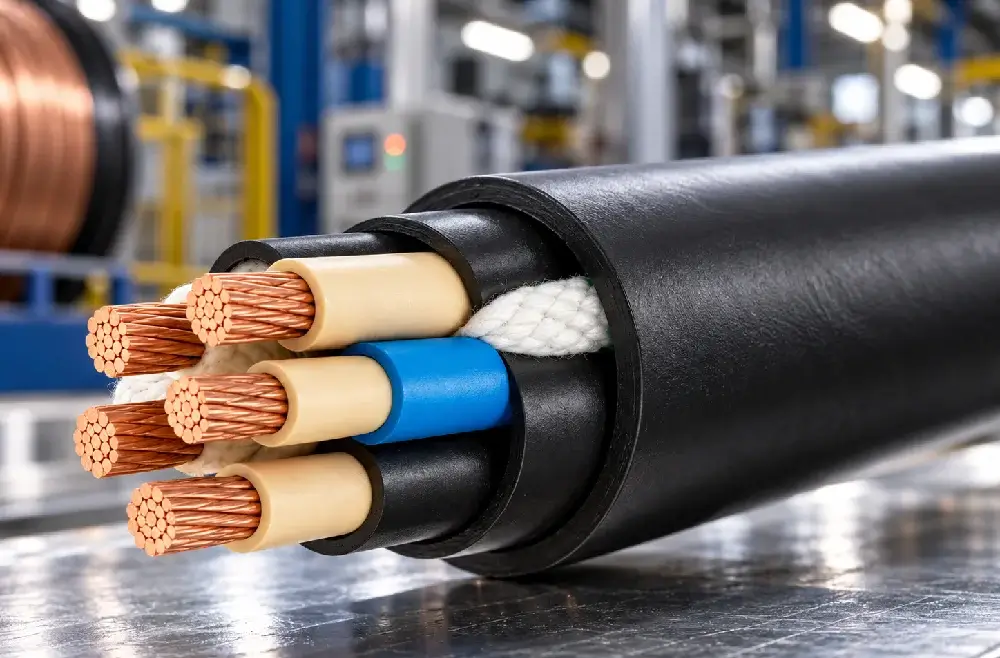

Cotton filler cords are specialized cotton ropes designed to fill the interstitial spaces between the conductors of an electrical cable. Their primary function within the cable’s architecture is to maintain its circular geometry, prevent internal elements from shifting under mechanical stress, and provide structural cohesion during manufacturing, storage, and installation.
Made from 100% natural cotton fibers, these cords offer the high flexibility, tensile resistance, and adaptability required across various diameters and complex configurations.
Why are they important in electrical cables?
A high-quality filler material is vital to ensuring mechanical integrity over the operational lifespan of the cable. Cotton filler cords deliver multiple performance benefits:
- Stable internal structure: Prevents conductors from shifting, crossing, or deforming, which could otherwise compromise electrical performance and impedance.
- Greater compression and torsion resistance: Absorbs and distributes mechanical stress during laying and installation, especially along complex routes.
- Compatibility with insulation materials: Seamlessly integrates with standard jacketing materials such as PVC, polyethylene (PE), rubber, and LSZH compounds.
- Superior cable finish: Ensures a regular, uniform profile, simplifying stripping, connectorization, and spooling operations.
Typical industrial applications
Due to their versatility and mechanical behavior, cotton filler cords are widely utilized in the production of diverse electrical wire types, including:
- Low- and medium-voltage power cables.
- Industrial control and instrumentation lines.
- Multipair or multiconductor configurations.
- Residential and commercial installation wires.
- Flexible cords and braided designs subject to continuous movement.
Advantages over synthetic filler materials
Although alternative synthetic fillers like polyester, polypropylene, polyethylene, or polyamide exist in the market, cotton remains one of the most valued materials for several core reasons:
- Natural behavior and softness: Minimizes internal friction in cables subjected to cyclic bending.
- Moisture absorption capacity: Helps regulate internal microclimates without structural degradation.
- Non-conductive and non-abrasive properties: Unlike certain stiff synthetic fibers, it protects both conductor insulation and outer jackets throughout the long service life of the asset.
Technical considerations for manufacturers
When selecting cotton filler cords, cable designers and manufacturers should evaluate key factors such as:
- Appropriate diameter and linear density according to the final geometry.
- Required twist or braiding level to ensure dimensional stability under tensile loads.
- Density and moisture behavior based on the target operational environment.
- Thermal compatibility with extrusion processes of insulation compounds.
A well-engineered core design can make a profound difference in final cable quality and field reliability. If your company is developing high-quality electrical cables and seeks effective, customized textile solutions, Juan Gili S.L. offers a comprehensive range of cotton filler cords manufactured to strict technical standards. Contact us to find the ideal option for your upcoming cable projects.
FAQS
On the contrary, they improve dynamic flexibility and dimensional stability. By uniformly filling the interstitial spaces, they prevent the conductors from crossing or being subjected to uneven stress during movement.
Yes. They integrate seamlessly with the insulation and jacketing compounds most commonly used in the cable industry, including PVC, polyethylene (PE), rubber, and halogen-free (LSZH) materials.
otton provides superior natural behavior, greater softness under continuous cyclic bending, and excellent internal microclimate management without being abrasive or damaging conductor insulation or enamel.
