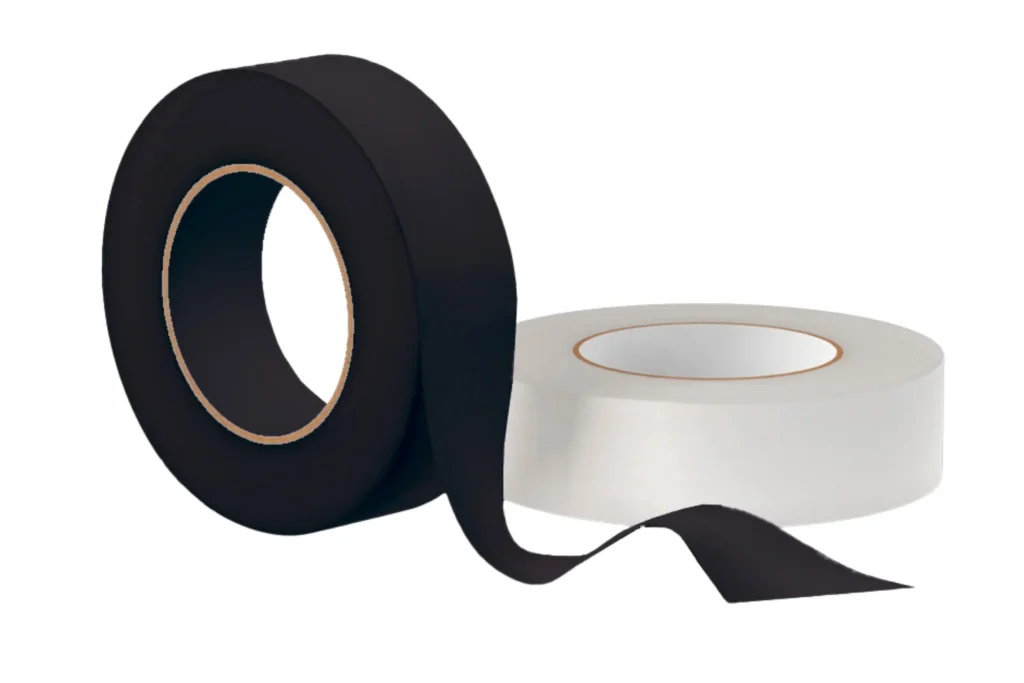

NON-WOVEN AND WOVEN BINDING TAPES

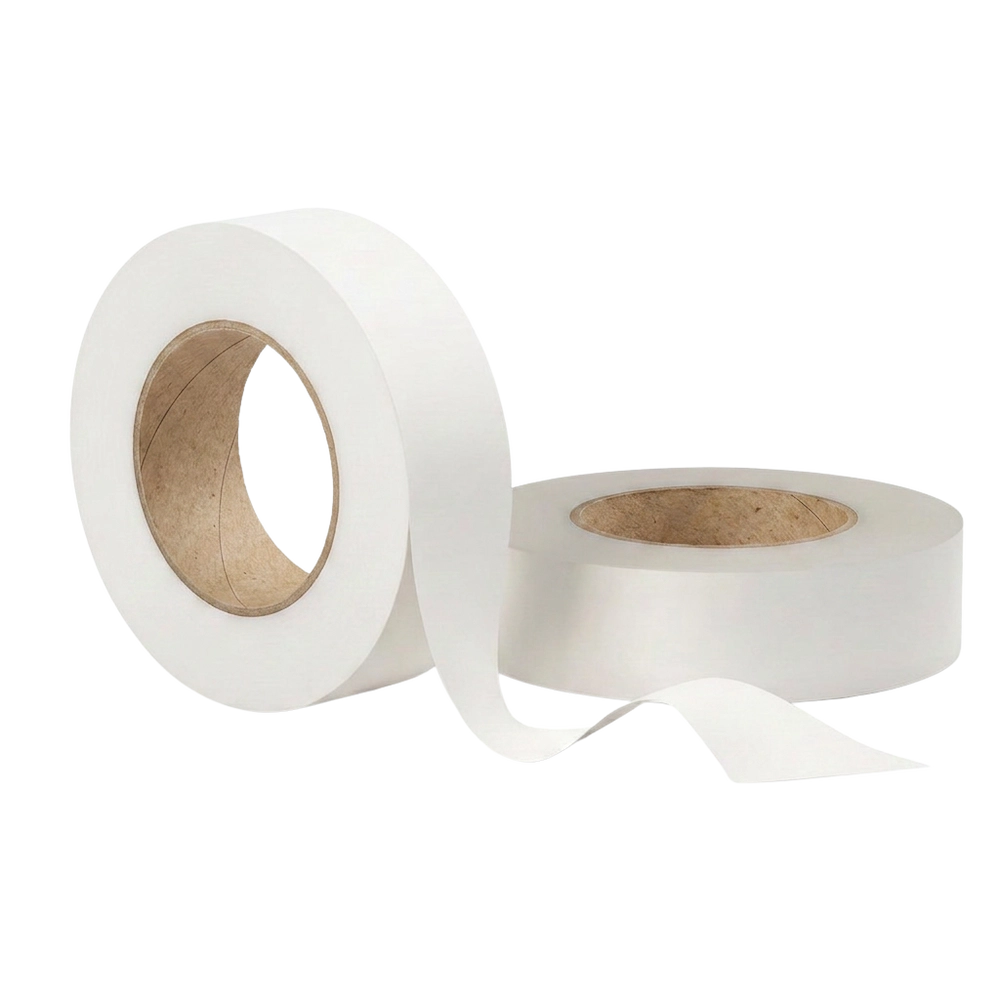

Non & Semi Conductive Non-Woven and Woven Binding Tape

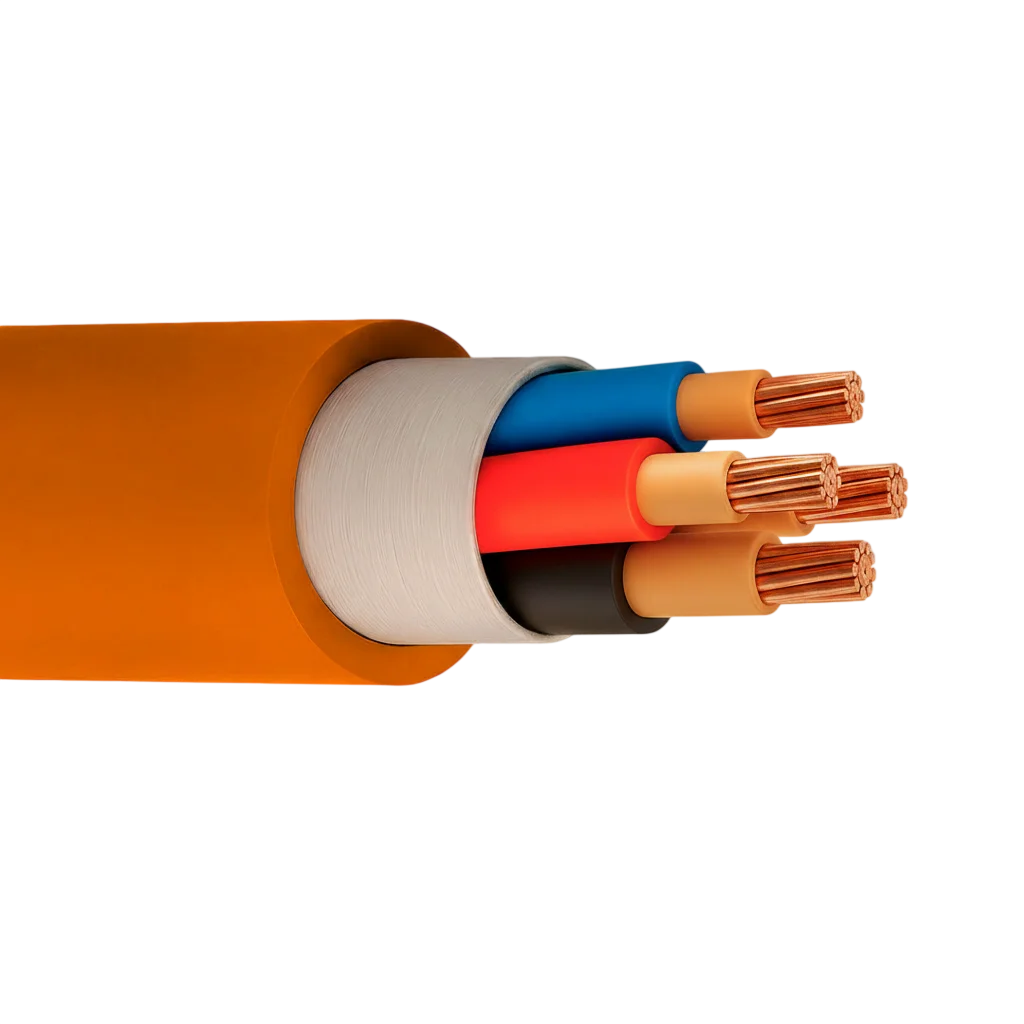

Binding Tapes are used to secure and compact the internal components of the cable, maintaining its integrity during manufacturing, handing and installation.
Non-Woven Tapes offer greater flexibility and adaptability, making them optimal for fiber optic and telecommunications cables.
Both types reduce internal friction, improve design stability, and facilitate access to cable elements through tearing systems.
Application

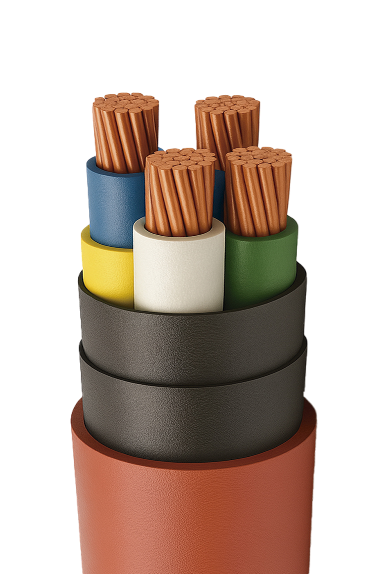

These tapes are widely used in the shielding, separation, and binding of conductors and cores in power cables. They act as a mechanical separator between different cable layers, ensuring proper insulation and preventing damage during processing and operation. Their binding function maintains core stability, roundness, and compactness, which facilitates further application of metallic shields or outer jackets. Additionally, they contribute to mechanical protection, dimensional stability, and ease of handling throughout the cable manufacturing process.
Range of products
Polyester Non-woven Non-conductive tape.
Polyester Non-woven Semi-conductive tape.
Nylon Semi-conductive tape.
Key Benefits
Structural control and protection in cables Binding Tapes are used to secure and compact the internal components of the cable, maintaining its integrity during manufacturing, handling, and installation. Offer greater flexibility and adaptability, making them optimal for fiber optic and telecommunications cables. Both types reduce internal friction, improve design stability, and facilitate access to cable elements through tearing systems.
Key features
- Non-conductive and Semi-conductive performance.
- Low weight.
- Thickness from 0.04 mm to 0.2 mm.
- Various forms: pads, spools and jumbo spools.
- Big OD to reduce production downtime is available.
NonCconductive Polyester
Non-Woven Fabric
Non-Conductive Polyester
Non-Woven Fabric
Used for shielding, separating and binding of conductor and core of power cable.
Can be customized as per individual requirements.
| Property | Unit | Specification | Test Method | |||||
|---|---|---|---|---|---|---|---|---|
| WFB-10 | WFB-20 | CWB-004 | CWB-005 | CWB-006 | CWB-009 | |||
| Thickness | mm | 0,10 ±0,03 | 0,20 ±0,03 | 0,04 ±0,02 | 0,05 ±0,02 | 0,06 ±0,02 | 0,09 ±0,02 | ISO 9073-2 |
| Weight | g / m2 | 50±3 | 80±5 | 20±2 | 25±3 | 30±3 | 40±3 | ISO 9073-1 |
| Tensile Strenght | N / cm | ≥50 | ≥55 | ≥20 | ≥25 | ≥28 | ≥38 | ISO 9073-3 |
| Elongation | % | ≥12 | ≥12 | ≥10 | ≥10 | ≥12 | ≥12 | ISO 9073-3 |
| Short Term – Long Term Stability |
°C | 90–230 | 90–230 | 90–230 | 90–230 | 90–230 | 90–230 | Gili Test 5 |
Roll and spool dimensions
| Slit width (mm) | 20–100 |
| Max. OD (mm) | 600 |
| ID (mm) | 76, 152 |
Reinforced Non-Conductive
Polyester Non-Woven Tape
Polyester Yarn HT
Non-Woven Fabric
These Reinforced Non-Woven Polyester Tape are widely usedin the shielding, separation, and binding of conductors and cores in power cables. They act as a mechanical separator between different cable layers, ensuring proper insulation and preventing damage during processing and operation. Their binding function maintains core stability, roundness, and compactness, which facilitates further application of metallic shields or outer jackets. Additionally, they contribute to mechanical protection, dimensional stability, and ease of handling throughout the cable manufacturing process.
Can be customized as per individual requirements.
| Property | Unit | Specification | Test Method | |
|---|---|---|---|---|
| SWSZSD-30 | SWSZSD-35 | |||
| Thickness | mm | 0,30±0,03 | 0,36±0,03 | ISO 9073-2 |
| Weight | g / m2 | 110±10 | 120±10 | ISO 9073-2 |
| Tensile Strenght | N / cm | ≥110 | ≥120 | ISO 9073-3 |
| Elongation | % | ≥16 | ≥16 | ISO 9073-3 |
| Swelling Speed | mm / 1’00 | ≥8 | ≥10 | Gili Test 4 |
| Swelling Height | mm / 3’00 | ≥12 | ≥15 | Gili Test 4 |
| Short Term – Long Term Stability |
°C | 90–230 | 90–230 | Gili Test 5 |
| Moisture Content | % | ≤8 | ≤8 | ISO 287 |
Roll and spool dimensions
| Slit width (mm) | 20–100 |
| Max. OD (mm) | 600 |
| ID (mm) | 76, 152 |
Reinforced Semi-Conductive
Polyester Non-Woven Tape
Polyester Yarn HT
Non-Woven Fabric
Carbon Black
Conductor binding, shielding and separating in cables and it is lighter, thinner and more strenght.
Can be customized as per individual requirements.
| Property | Unit | Specification | Test Method | ||
|---|---|---|---|---|---|
| SWBZSD-30 | SWBZSD-30 | SWBZSD-35 | |||
| Thickness | mm | 0,30±0,02 | 0,30±0,05 | 0,35±0,05 | ISO 9073-2 |
| Weight | g / m2 | 80±10 | 100±10 | 150±10 | ISO 9073-2 |
| Tensile Strenght | N / cm | ≥100 | ≥100 | ≥150 | ISO 9073-3 |
| Elongation | % | ≥12 | ≥12 | ≥12 | ISO 9073-3 |
| Short-Term Stability | °C | 230 | 230 | 230 | Gili Test 5 |
| Long-Term Stability | °C | 145 | 145 | 145 | IEC 216 |
| Surface Resistance | Ω | ≤1500 | ≤1500 | ≤1500 | Gili Test 8 / DIN 53482 |
| Volume Resistance | Ω·cm | < 1x10⁶ | < 1x10⁶ | < 1x10⁶ | Gili Test 9 / DIN 54345 |
Roll and spool dimensions
| Slit width (mm) | 20–100 |
| Max. OD (mm) | 600 |
| ID (mm) | 76, 152 |
Semi-Conductive
Nylon Tape
Nylon Fabric
Carbon Black
Used for shielding, separating and binding of conductor and core of power cable.
Can be customized as per individual requirements.
| Property | Unit | Specification | Test Method | ||
|---|---|---|---|---|---|
| BNLD-10 | BNLD-12 | BNLD-14 | |||
| Thickness | mm | 0,10±0,02 | 0,12±0,02 | 0,14±0,02 | ISO 9073-2 |
| Weight | g / m2 | 90±5 | 100±5 | 110±5 | ISO 9073-2 |
| Tensile Strenght | N / cm | ≥100 | ≥120 | ≥150 | ISO 9073-3 |
| Elongation | % | ≥25 | ≥25 | ≥25 | ISO 9073-3 |
| Short-Term Stability | °C | 230 | 230 | 230 | Gili Test 5 |
| Long-Term Stability | °C | 145 | 145 | 145 | IEC 216 |
| Surface Resistance | Ω | ≤1000 | ≤1000 | ≤1000 | Gili Test 8 / DIN 53482 |
| Volume Resistance | Ω·cm | < 1x10⁵ | < 1x10⁵ | < 1x10⁵ | Gili Test 9 / DIN 54345 |
Roll and spool dimensions
| Slit width (mm) | 20–100 |
| Max. OD (mm) | 600 |
| ID (mm) | 76, 152 |
