cords
Application
Fillers are non-conductive filling elements used to maintain the round shape of the cable, stabilize its internal structure, and prevent the movement of components during installation or use. In addition, they act as shock absorbers against vibrations and can provide additional mechanical strength depending on the material. They are essential in fiber optic, power, and telecommunications cables.
Range of products
85% Cotton and 15% Polyester.
67% Cotton and 33% Polyester.
50% Recycled Cotton and 50% Polyester f ibers cotton filler cords and ropes.
Key Benefits
Maintains cable geometry.
Reduces internal movement.
Improves mechanical stability.
Compatible with extrusion and braiding processes.
Key features
From 1,2mm to 8mm thickness.
Different types of cotton material.
Different coatings that customers request (waterproof, flame retardant and others).

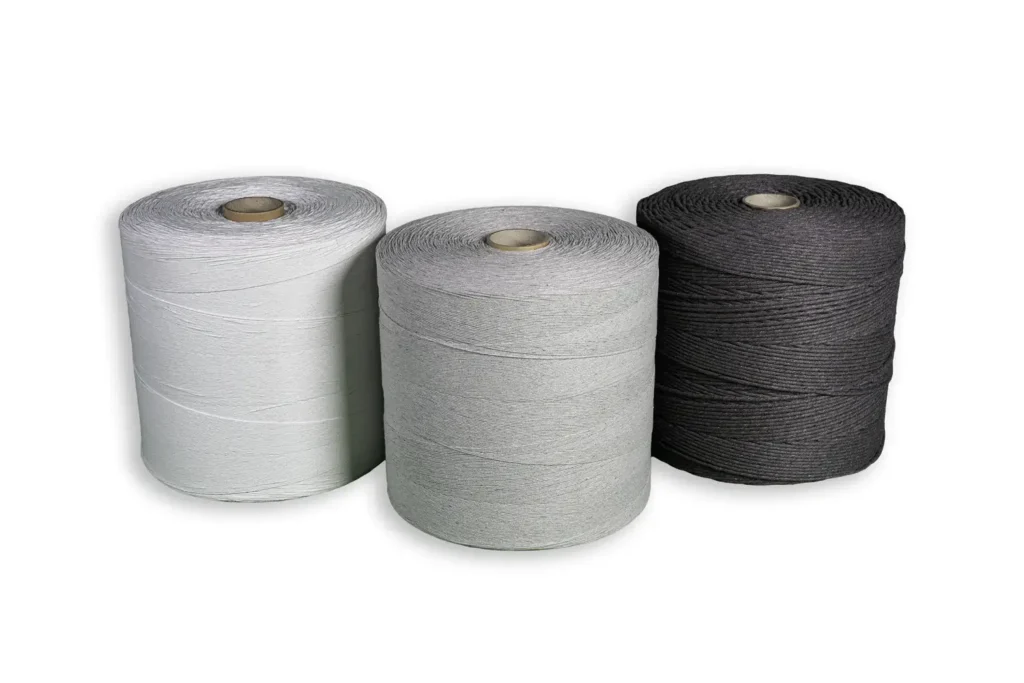

White cotton filler cord
| Property | Unit | 1,2 mm | 2,8 mm | 3,8 mm | 4,8 mm | 5,8 mm | Test Method |
|---|---|---|---|---|---|---|---|
| Tensile Strenght | N | 86 | 220 | 320 | 450 | 620 | ISO–2062 |
| Elongation | % | 9,7 | 14,5 | 14,5 | 12,5 | 15 | ISO–2062 |
| Diameter | mm | 1,2 | 2,8 | 3,8 | 4,8 | 5,8 | Gili Test 12 |
| Shrinkage | % | 4 | 4 | 4 | 4 | 4 | ASTM D2259 |
100% White Cotton
Possible to produce in Waterproof, Flame retardant and other coatings

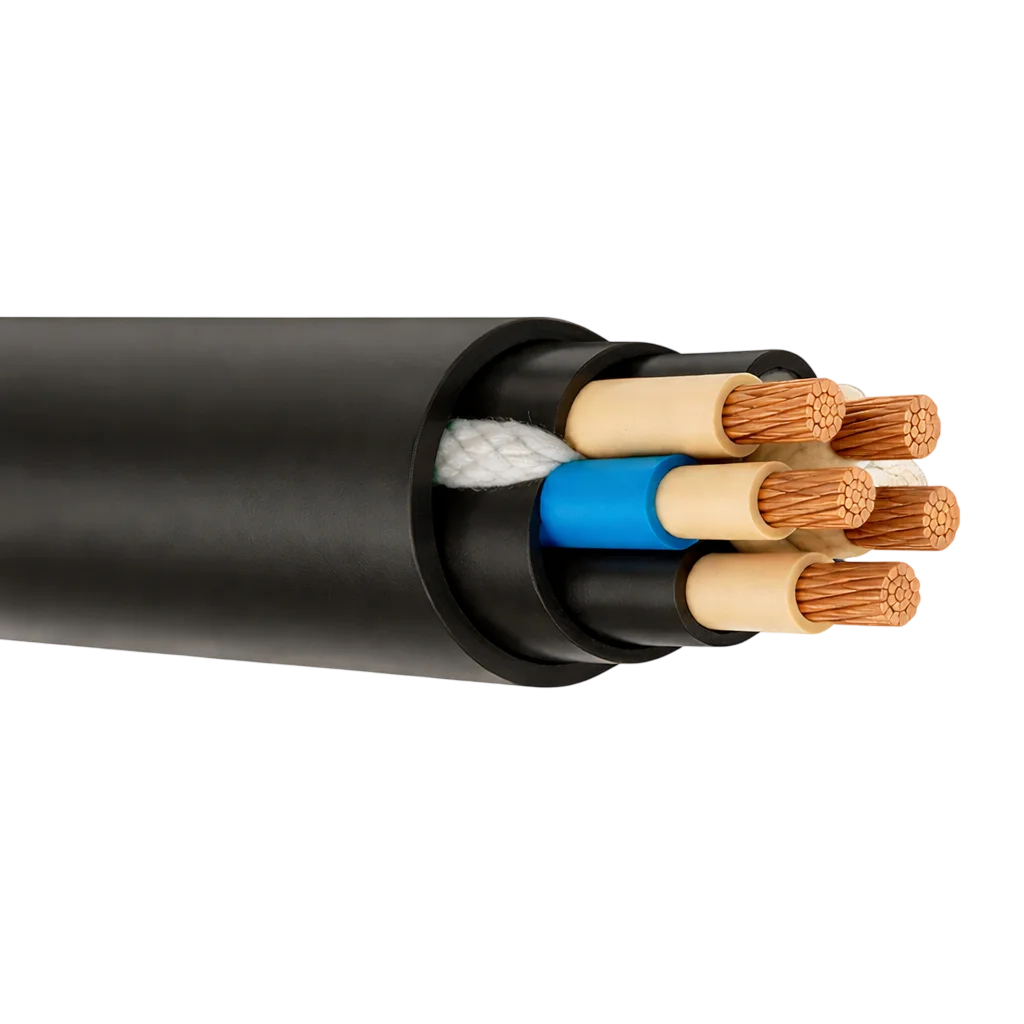

Cotton Filler Cord for the central members of the cable.
Used for low, medium and high voltage power cables.
Can be customized as per individual requirements.
| Parameter | Unit | 1,2mm | 2,8mm | 3,8mm | 4,8mm | 5,8mm |
|---|---|---|---|---|---|---|
| Cord Weight | m/Kg | 714 | 312 | 200 | 147 | 109 |
| Denier | gr/9000mm | 12.600 | 28.800 | 45.000 | 61.200 | 82.800 |
| Tex | gr/1000mm | 1.400 | 3.200 | 5.000 | 6.800 | 9.200 |
| Weight Coils | Kg | 30 | 30 | 30 | 30 | 30 |
| Typical Lenght | m/bob | 21.420 | 9.375 | 6.000 | 4.411 | 3.260 |
| ID of tube | mm | 80 | 80 | 80 | 80 | 80 |
| OD of bob | mm | 400 | 400 | 400 | 400 | 400 |
| Tube Lenght | mm | 414 | 414 | 414 | 414 | 414 |
Normal cotton filler cord
| Property | Unit | 1,6 mm | 2,0 mm | 3,0 mm | 4,0 mm | 5,0 mm | 6,0 mm | 8,0 mm | Test Method |
|---|---|---|---|---|---|---|---|---|---|
| Tensile Strenght | N | 86 | 98 | 243 | 352 | 470 | 710 | 1.100 | ISO–2062 |
| Elongation | % | 9.7 | 9.7 | 12.1 | 12 | 13 | 11 | 11 | ISO–2062 |
| Diameter | mm | 1.6 | 2.0 | 3.1 | 4.0 | 5.0 | 6.0 | 8.0 | Gili Test 12 |
| Shrinkage | % | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ASTM D2259 |
Normal Cotton Colour & Pink Colour
Possible to produce in Waterproof, Flame retardant and other coatings

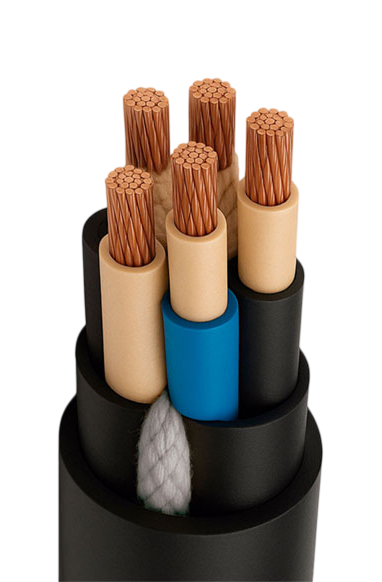

Cotton Filler Cord for the central members of the cable.
Used for low, medium and high voltage power cables.
Can be customized as per individual requirements.
| Parameter | Unit | 1,6mm | 2,0mm | 3,0mm | 4,0mm | 5,0mm | 6,0mm | 8,0mm |
|---|---|---|---|---|---|---|---|---|
| Cord Weight | m/Kg | 714 | 625 | 278 | 179 | 125 | 100 | 66.66 |
| Denier | gr/9000mm | 12.600 | 14.400 | 32.400 | 50.400 | 72.000 | 90.000 | 135.000 |
| Tex | gr/1000mm | 1.400 | 1.600 | 3.600 | 5.600 | 8.000 | 9.000 | 15.000 |
| Weight Coils | Kg | 30 | 28 | 30 | 30 | 30 | 30 | 30 |
| Typical Lenght | m/bob | 21.420 | 17.500 | 8.340 | 5.370 | 3.750 | 3.000 | 2.000 |
| ID of tube | mm | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| OD of bob | mm | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Tube Lenght | mm | 414 | 414 | 414 | 414 | 414 | 414 | 414 |
Multicolor cotton filler cord
| Property | Unit | 1,6mm | 2,0mm | 3,0mm | 4,0mm | 5,0mm | 6,0mm | 8,0mm | Test Method |
|---|---|---|---|---|---|---|---|---|---|
| Tensile Strenght | N | 69 | 85 | 197 | 300 | 470 | 710 | 900 | ISO–2062 |
| Elongation | % | 9.5 | 9.0 | 9.3 | 8 | 13 | 11 | 10 | ISO–2062 |
| Diameter | mm | 1.6 | 2 | 3.1 | 4.0 | 5.0 | 6.0 | 8.0 | Gili Test 12 |
| Shrinkage | % | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ASTM D2259 |
Recycled Cotton and Polyester in Dark colour
Possible to produce in Waterproof, Flame retardant and other coatings
Cotton Filler Cord for the central members of the cable.
Used for low, medium and high voltage power cables.
Can be customized as per individual requirements.
| Parameter | Unit | 1,6mm | 2,0mm | 3,0mm | 4,0mm | 5,0mm | 6,0mm | 8,0mm |
|---|---|---|---|---|---|---|---|---|
| Cord Weight | m/Kg | 714 | 625 | 278 | 179 | 125 | 100 | 66.66 |
| Denier | gr/9000mm | 12.600 | 14.400 | 32.400 | 50.400 | 72.000 | 90.000 | 135.000 |
| Tex | gr/1000mm | 1.400 | 1.600 | 3.600 | 5.600 | 8.000 | 9.000 | 15.000 |
| Weight Coils | Kg | 30 | 28 | 30 | 30 | 30 | 30 | 30 |
| Typical Lenght | m/bob | 21.420 | 17.500 | 8.340 | 5.370 | 3.750 | 3.000 | 2.000 |
| ID of tube | mm | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| OD of bob | mm | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Tube Lenght | mm | 414 | 414 | 414 | 414 | 414 | 414 | 414 |
